15.6inch Portable Monitor FHD-IPS Panel Second Screen for Laptop
15.6inch Portable Monitor FHD-IPS Panel Second Screen for Laptop
SPECIFICATIONS
Application: Laptop
Bracket Type: other
Brand Name: HGFRTEE
Brightness: 250cd/m
Built-in Speaker: Yes
Display Ratio: 16:9
Display Size: 15.6
Feature: Speaker,Gaming
High-Dynamic Range: HDR10
Hign-concerned Chemical: None
Horizontal Viewing Angle: 178°
Matrix color depth: 6 bit
Panel Type: IPS
Products Status: STOCK
Refresh Rate: 60Hz
Refresh rate sync technology: Adaptive Sync
Resolution: 1920x1080
Response Time: 3ms
Screen Type: LCD
Screen curvature: None
Vertical Viewing Angle: 178°
Specifications |
Band |
HGFRTEE |
Screen size |
15.6 inch |
|
Panel type |
ADS-IPS |
|
Resolution |
1920*1080P |
|
Aspect ratio |
16:09 |
|

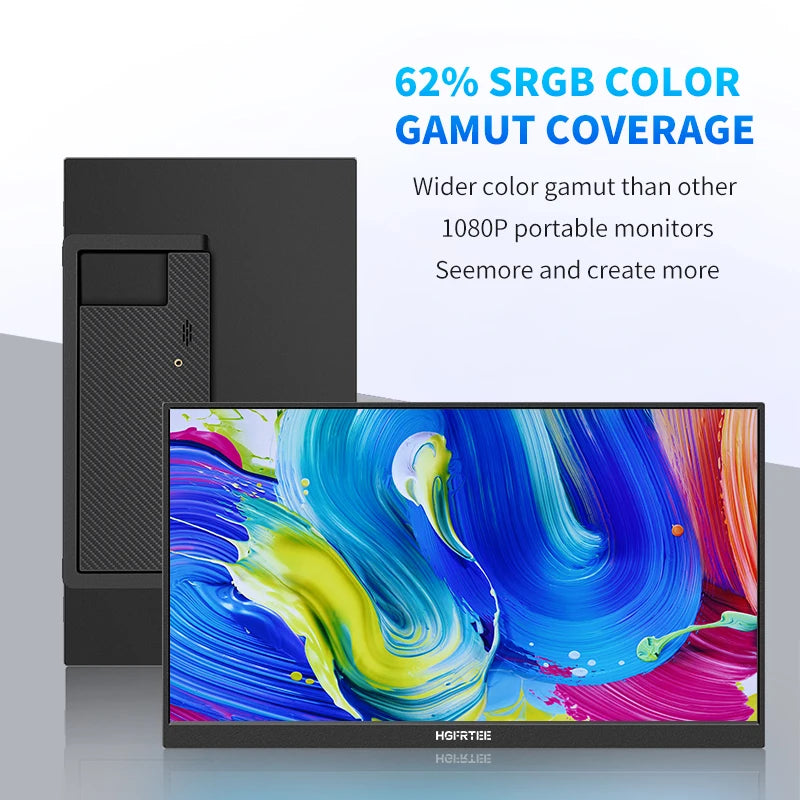

Color Gamut |
45% NTSC,62%SRGB |
|
Displays Colours |
262K (6-bit) |
|
Brightness |
250cd/m2 |
|
RefreshRrate |
TYPE-C 3.1 1920*1080P@60hz/ HDMI 1.4 1920*1080P@60hz |
|
Contrast |
800:1 |
|
Viewing angle |
178° |
|
Refresh rate |
60Hz |
|
Response time |
3ms |
|
HDR |
support |
|
Freesync |
Adaptive Sync (freesync) |
|
Appearance size |
359mm*220mm*7mm |
|
Weight |
742g |
|
|
Monitor |
*1 |
HDMI cable |
*1 |
|
USB-C to USB-C Cable |
*1 |
|
Power cable |
*1 |
|
Manual |
*1 |
Monitor FAQ - Troubleshooting Common Issues
Q: Showing "No Signal" on the screen.
A1: When connecting with a Type-C cable, make sure your device supports Type-C 3.0，
Thunderbolt 3. lf not, please add a Mini HDMl to HDMl cable for signal transmission.
A2: if connected with an HDMl cable, please ensure to supply extra power for the monitor.
Q: My monitor won't power on.
A: Check if the monitor and your device are in the ON mode. Make sure the cable is properly
connected. Connect another available device or cable to check. lf the problem
persists, please contact the after-sales service center.
Q: Why is my screen flickering?
A: Please check if the connection is loose. lf there is no problem with the connection,
it may be due to insufficient power supply（minimum power requirement for the monitor
is PD 20W.） Please connect the adapter and use it again, or try to chang a new connecting
cable and device for connection. lf it still doesn't work, it is recommended to
contact the after-sales service center.
Q: Why does the monitor make a current sound or rustling noise?
A: Please confirm where the noise is coming from. If it is the noise from the connection,
please re-plug the interface or replace it with a new cable. If it is the sound from the
adapter or the speaker, it may be due to the quality of the power adapter.
Please contact us.
A1: Please confirm that your phone has a Type-C interface and is at least version 3.0 or
has a PD protocol. If not, it may not be compatible, and some conversion machines can
be used to make it compatible, for example: HD adapter.
A2: Please make sure to use the original cable.
A3: Please try another device. if it still fails, please tell us for a replacement
